Reverse-engineering my speakers' API to get reasonable volume control

I got some fancy new speakers last week.

They’re powered speakers and they have streaming service integrations built in, unlike the 35-year-old passive speakers I’m upgrading from. Overall they’re great! But they’re so loud that it’s difficult to make small volume adjustments within the range of safe volume levels for my apartment.

To solve that, I’m building a custom volume knob for them them that will give me more precise control within the range I like to listen in.

The speakers

The problem

The speakers sound great, but they’re way louder than I need. I typically use about 10% of the volume range they’re capable of.

That makes it difficult to set the volume levels I prefer using the methods most convenient for me, which are either the regular volume controls on my phone or computer if I’m using AirPlay or the volume slider in Spotify if I’m using Spotify Connect. Those methods either give me a tiny slider that I can only use 10% of or about 15 steps where the jump from step 3 to step 4 takes the speakers from “a bit too quiet” to “definitely bothering the neighbors” levels.

The amp that I used to use was overpowered for my room too, but that wasn’t an issue for me because those volume control methods attenuated the output of a music streamer that I had connected to the amp. With that system, I could set the amplifier’s analog volume knob such that the max volume out of the streamer corresponded to my actual maximum preferred listening volume, giving me access to the full range of Spotify or AirPlay’s volume controls.

Some powered speakers solve this issue by providing control over the max volume, either by a physical knob or by a software setting, but unfortunately these JBLs do not.

Finding a solution

While thinking about this problem, I remembered that some other network-connected audio devices I’ve encountered expose undocumented web interfaces. I was curious if these speakers did, so I found their local IP address via my router and navigated to that IP in my browser.

Lo and behold, they do have one!

The speakers’ web interface

Sadly, the volume slider there was still not as convenient as I’d like.

Reverse-engineering the speakers’ API

After exploring that web interface for a few minutes with my browser’s network dev tools, I found that the speakers expose a pretty straightforward HTTP API, including GET /api/getData and POST /api/setData, which allow me to read and write the current volume level, among other things.

I tried to find some documentation of this API online, but the closest I could find was the source code for a Hombridge plugin for KEF speakers. It seems like KEF’s and JBL’s network-connected speakers share some code, which isn’t too surprising given that they’re both owned by Harman 1 (which is apparently owned by Samsung as of 2017!)

After that, I found that the speakers’ web interface has a page that allows me to download system logs, which turned out to include a copy of the part of the filesystem that stores the current settings!

$ tree ~/Downloads/temp_data_logs
/Users/james/Downloads/temp_data_logs
├── media
│  └── settings
│     └── settings
│        ├── airable
│        │  └── uniqueId
│        ├── airplay
│        │  ├── addedToHome
│        │  ├── deviceName
│        │  ├── pairingPreferences
│        │  └── password
│        ├── deviceName
│        ├── deviceNameChangeCount
│        ├── fwupdate
│        │  ├── enablePeriodicChecks
│        │  ├── resumeUpdateData
│        │  └── updateDescription
│        ├── googlecast
│        │  ├── bssid
│        │  ├── castVersion
│        │  └── deviceUniqueId
│        ├── hostlink
│        │  └── maxVolume
│        ├── locationCountry
│        ├── locationRegion
│        ├── mcuVersion
│        ├── mediaPlayer
│        │  ├── attenuation
│        │  ├── mute
│        │  └── playMode
│        ├── network
│        │  └── profile
│        ├── roon
│        │  └── uniqueId
│        ├── spotify
│        │  ├── blob
│        │  ├── presets
│        │  └── username
│        ├── system
│        │  ├── deviceUptime
│        │  ├── maxIdlePlayTime
│        │  ├── maxIdleTime
│        │  ├── memberId
│        │  ├── primaryMacAddress
│        │  └── serialNumber
│        ├── tidalConnect
│        │  └── networkInterface
│        ├── timezone
│        ├── upnpRenderer
│        │  └── udn
│        ├── versionLastBooted
│        └── www
│           ├── ftsComplete
│           ├── ftsGoogleCast
│           ├── ftsNetwork
│           └── ftsTimeZone
├── tmp
│  └── log
│     ├── bluez
│     ├── cast_shell
│     ├── cast_shell.0
│     ├── nSDK
│     ├── nSDK.0
│     ├── process_manager
│     ├── scwd
│     ├── system
│     ├── update_engine
│     ├── update_engine.0
│     ├── websocketd
│     ├── wpasupplicant
│     └── wpasupplicant.0
└── var
   └── log
      ├── messages
      └── messages.0

That helped me track down two specific configuration paths that looked promising: player/attenuation and hostlink/maxVolume.

Sadly, neither of those turned out to be what I was looking for.

player/attenuation turned out to be another interface to the main volume, more-or-less an alias of player:volume.

hostlink/maxVolume sounded like it could be exactly what I was hoping to find. Unfortunately, changing it doesn’t seem to affect anything that I’ve noticed, and the API response implies that it has to do with Arcam (yet another Samsung/Harman subsidiary):

$ curl --url 'http://192.168.1.239/api/getData?path=settings:/hostlink/maxVolume&roles=@all' | jq
{
  "timestamp": 1711309370908,
  "title": "Max volume setting (ARCAM-project specific)",
  "modifiable": true,
  "type": "value",
  "path": "settings:/hostlink/maxVolume",
  "defaultValue": {
    "type": "i32_",
    "i32_": 99
  },
  "value": {
    "type": "i32_",
    "i32_": 46
  }
}

Building a custom volume-control webpage

If I couldn’t set a max volume inside the speaker, I could at least build myself a custom slider that only covers the range of volumes I’m interested in listening at.

To do that, I put together a little web page with nothing but a full-width slider for setting the volume, and I finally have a way to choose reasonable levels!

A recording of the volume slider web page

I tried to do that in a single HTML file, but ran into CORS issues when sending requests to the speakers, so I put together a tiny server using Bun. With that, I was able to keep it down to a single TypeScript file with no dependencies other than Bun itself:

// server.ts
// Run this via `bun --hot server.ts`

const MAX_VOLUME = 25;
const SPEAKER_URL = "http://192.168.1.239";
const UPDATE_INTERVAL_SECONDS = 10;

const getVolumeUrl = `${SPEAKER_URL}/api/getData?path=player:volume&roles=@all`;

function html(strings: TemplateStringsArray, ...values: any[]) {
  return strings.reduce((result, string, i) => {
    return result + string + (values[i] || "");
  }, "");
}

const pageHtml = html`<html>
  <head>
    <title>volume</title>
    <style>
      body {
        margin: 0;
      }

      #volume {
        -webkit-appearance: none;
        appearance: none;
        margin: 0;
        width: 100%;
        height: 100%;
        cursor: pointer;
        outline: none;
        background: linear-gradient(to right, blue var(--volume), white 0);
      }

      /* Hide the thumb */
      #volume::-webkit-slider-thumb {
        -webkit-appearance: none;
        appearance: none;
        width: 0;
        height: 0;
      }
      #volume::-moz-range-thumb {
        width: 0;
        height: 0;
      }
    </style>
  </head>
  <body>
    <input
      type="range"
      min="0"
      max="${MAX_VOLUME}"
      value="0"
      id="volume"
      disabled
    />
    <script>
      // Yes, this is JavaScript embedded in HTML embedded in TypeScript.

      function setBackgroundGradient() {
        const percentage = (volume.value / ${MAX_VOLUME}) * 100;
        document.body.style.setProperty("--volume", \`\${percentage}%\`);
      }

      // I only recently learned that you can reference elements by ID this way.
      // It's kind of horrible but also I love it on tiny pages like this.
      volume.oninput = async function setVolume() {
        fetch("volume", {
          method: "POST",
          body: JSON.stringify({ volume: volume.value }),
        });
        setBackgroundGradient();
      };

      async function getVolume() {
        const response = await fetch("volume");
        const body = await response.text();
        volume.value = body;
        volume.disabled = false;
        setBackgroundGradient();
      }

      getVolume();
      setInterval(getVolume, ${UPDATE_INTERVAL_SECONDS * 1000});
    </script>
  </body>
</html>`;

const server = Bun.serve({
  async fetch(request) {
    const url = new URL(request.url);

    switch (url.pathname) {
      case "/":
        return new Response(pageHtml, {
          headers: { "Content-Type": "text/html" },
        });

      case "/volume":
        switch (request.method) {
          case "GET": {
            const response = await fetch(getVolumeUrl);
            const body = await response.json();
            return new Response(body.value.i32_);
          }

          case "POST": {
            const { volume } = await request.json();

            console.log(`Setting volume to ${volume}.`);

            // I don't want to blow out the speakers or go deaf because of a bug
            // somewhere else in this code, so I check for high volumes here.
            if (volume > MAX_VOLUME) {
              console.error("That's too high!", volume);
              return new Response("Volume too high", { status: 500 });
            }

            return fetch(`${SPEAKER_URL}/api/setData`, {
              method: "POST",
              headers: {
                "Content-Type": "application/json",
              },
              body: JSON.stringify({
                path: "player:volume",
                role: "value",
                value: { type: "i32_", i32_: volume },
                _nocache: new Date().getTime(),
              }),
            });
          }
        }
    }

    console.error("Not found:", url.pathname);
    return new Response("Not Found", { status: 404 });
  },
});

console.log(`Server running on http://localhost:${server.port}.`);

The web server here is pretty small. It just serves the page with the slider and forwards requests to the speakers.

I’m using that tagged template just to get nicer syntax highlighting in my editor for the embedded HTML.

What’s next?

This works alright for now, but what I really want is a physical volume knob that I can place wherever it’s convenient in my apartment.

In the next post in this series, I’ll talk about building that, probably using something like an ESP32 board with a rotary encoder, a nice enclosure and a nice feeling knob, maybe with some kind of haptic feedback for the stepped volume changes?

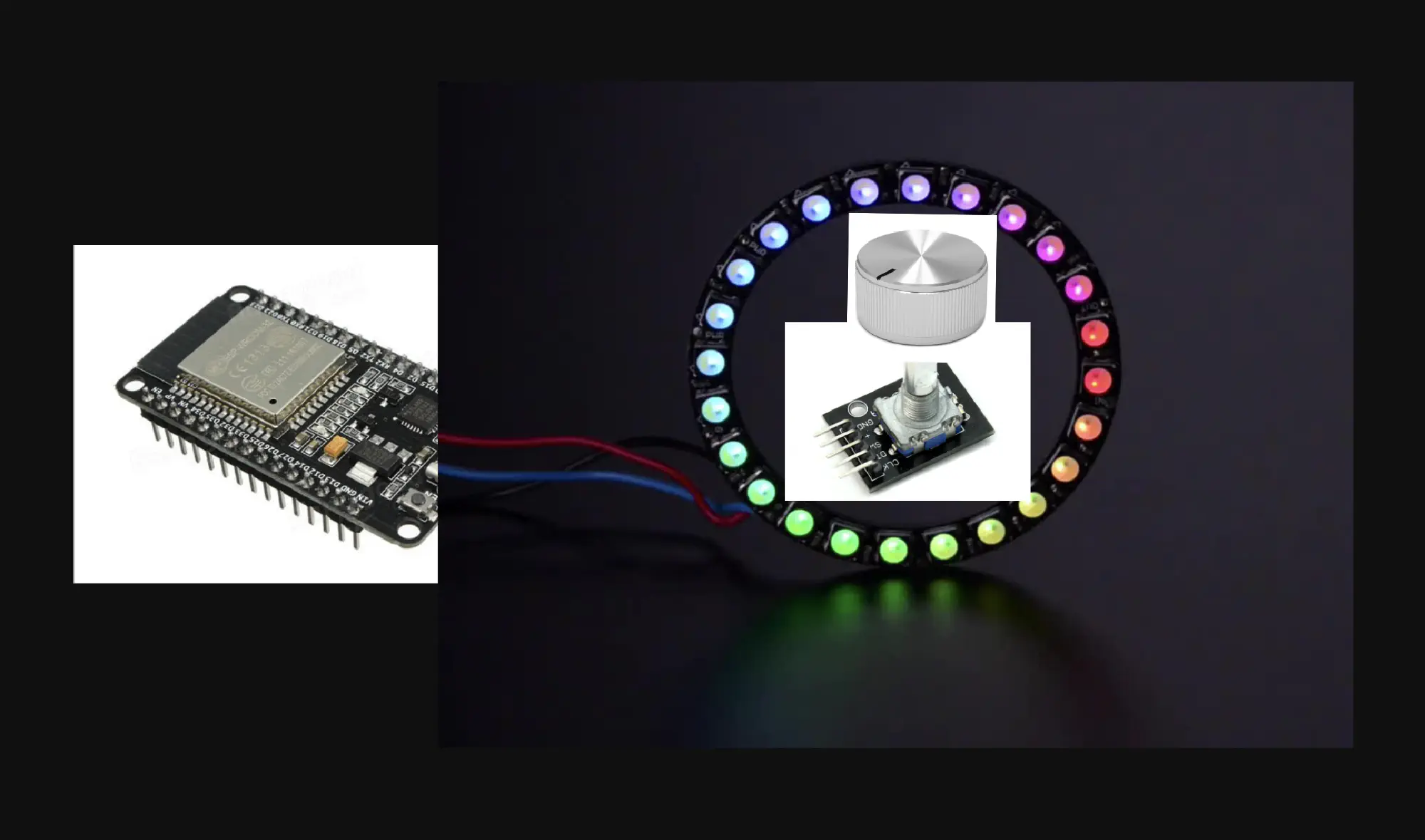

Some of the components I might use

I haven’t actually worked with those components before, and it’s been a while since I last worked on a hardware electronics project, but I’m excited to!

  1. Someone on Hacker News pointed out that KEF is not owned by Harman. My mistake! KEF is owned by Gold Peak. I dug into the API similarities more and it seems like both JBL and KEF networked speakers run StreamSDK. ↩︎

Discuss this post here on Hacker News or shoot me an email!
